MINI GRAZE
MINI GRAZE

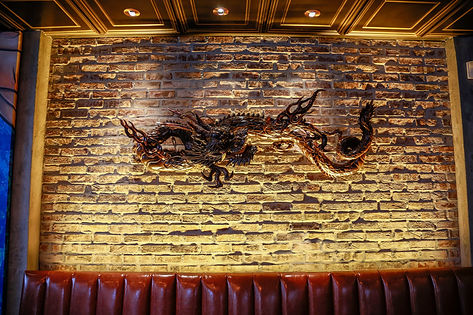

Mini Graze® is an exciting brand new wall grazing lighting system built upon our award-winning, patented, Mini Cove® series. It is powerful and efficient with a choice of standard output at 502 lumens per foot or high output delivering 1400 lumens per foot, all packaged in a small size of just 1 3/16in (30mm) tall fixture. Unlike other fixtures which are much larger in physical size, Mini Graze technology ensures fixtures are cool to the touch even at 1400 lumens per foot.
48in (1219.2mm)
6in (152.4mm) ELV Only*
12in (304.8mm)
Link any combination of fixtures and every fixture will dim together, smoothly, synchronized from 100% to 0%. With no minimum run lengths required, just one 1ft fixture will dim seamlessly.
VERSATILE SIZES
DIMENSIONS
Engineered in the US to true US customary measurement systems.
12 11/16in (322mm)
11/16in (17.46mm)
1 3/16in (30mm)
170°
12in (304.8mm)
1 13/16in (46mm)
3 1/8in (80mm)
LINEAR OPTIC
Precise beam pattern with no color over angle, no striations, and no dark spots
MINI GRAZE WHITE LIGHT
Many models ship in 48 hours
• Smooth dimming down to 0%
• MODA Superior LEDs
• 5W/ft up to 728 lm/ft
• 10W/ft up to 1400 lm/ft
• Up to 125 lm/W
• CRI 95 - 1800, 2200, 2400, 2700, 3000, 3500 and 4000K
• Universal 100-277V Input
• ELV or 0-10V Dimming
• Rotates 170 degrees
• Interior Damp Location Rated
1800K
NEW
2200K
2400K
2700K
EOL
3000K
3500K
4000K
6500K
MINI GRAZE STATIC COLOR
Smooth dimming down to 0%
• MODA Superior LEDs
• 15 Vibrant colors
• Universal 100-277V Input
• ELV or 0-10V Dimming
• Rotates 170 degrees
• Interior Damp Location Rated
RED
GREEN
BLUE
AMBER
END OF LIFE NOTICE
ORANGE
DARK ORANGE
ICE BLUE
CYAN
LIGHT GREEN
PINK
TURQUOISE
DARK BLUE
YELLOW
GOLDEN YELLOW
VIOLET
MINI GRAZE GLOW-DIM
Some models ship in 48 hours
• Transitions from a cooler color temperature to a warmer one while dimming at the same time
• MODA Superior LEDs
• 3500K to 2200K
• 3000K to 2200K
• Incandescent 2700K to 1800K
• Up to 125 lm/W
• CRI 95 - 1800, 2700, 3000 and 3500K
• Universal 100-277V Input
• 0-10V or DMX Control
• NEW: DMX-RDM-enabled now available
• Rotates 170 degrees
• Interior Damp Location Rated
2200K
3500K
2200K
3000K
1800K
2700K
MINI GRAZE DYNAMIC WHITE
Some models ship in 48 hours
• Dynamic White 2200K to 6500K
• Dynamic Warm 1800K to 3000K
• Dynamic Cool 3500K to 6500K
• MODA Superior LEDs
• 5W/ft up to 418 lm/ft
• Up to 77 lm/W
• CRI 95 - 1800, 2200, 2400, 2700, 3000, 3500 and 4000K
• Universal 100-277V Input
• DMX 512 Control
• NEW: DMX-RDM-enabled now available
• Rotates 170 degrees
• Interior Damp Location Rated
END OF LIFE NOTICE 3500-6500K
3500K
6500K
1800K
3000K
2200K
6500K
DIMMING CONTROLS
ELV 0-10V DMX 512
Our patent pending new dimming technology enables our fixtures to dim so precise and to be flawless at the low end trim of a dimming system. Combining our advanced firmware with intelligent micro processors and dimming chips, this technology creates a 100-0% dimming curve, smooth, no noise and flicker free and allows our lighting systems to be completely synchronized.
MODA LED
The LEDs that are available are red, green, blue, amber, yellow and ultra violet. All others are phosphor mixes. Having a deep knowledge and understanding of mixing phosphor allows us to produce unbeatable LEDs that give a specification grade performance tailored to the highend lighting industry. We buy the industry leading wafers, manufacture our own components utilizing the very best phosphors from Mitsubishi, and high performance adhesives to produce our own single bin
MODA DRIVER
Every Moda Product which has an onboard or remote driver has been custom designed by our Engineers to be specific to our products and is designed for long life and incredible performance. Potted with soft silicone epoxy for superior heat dissipation. The majority of our components are purchased in the United States of America. We currently have over 60 unique drivers that we are currently using to power our advanced fixtures. Designed & Developed by Moda Light USA
SOFTWARE
Moda has an industry leading division of advanced software. Our Award-Winning technology is incorporated into many of our fixtures, programmed directly into our very own Microprocessors and dimming chips to allow for smooth, step-free, noise free and flicker free synchronized dimming down to zero percent with many of the current popular dimmers and dimming system.
HIGH CRI
We should all have the best light performance that technology allows for. Packaging our own dies and mixing our own phosphors gives us the ability to make LEDs specific for our products and the specification lighting industry. We are first and unequalled with the ability to Color Rendering Index’s typically in the high 90s without sacrificing efficacy. Precisely what the lighting specifier needs. This is standard within our range and we make no up charges giving you the very best a fixture can be.
ZERO BIN
At Moda we make our own LEDs and are not reliant on third parties. We control every aspect of their production from wafers, cups, gold wire to complex phosphors and adhesives. We run small batches and are able to make every LED the same - therefore we do not have bins like the large commercial die manufacturers have. Ensuring that every LED is the same time and time again. Bin Free for life which we call Zero Bin
KWIK CONNECT
We should all have the best light performance that technology allows for. Packaging our own dies and mixing our own phosphors gives us the ability to make LEDs specific for our products and the specification lighting industry. We are first and unequalled with the ability to Color Rendering Index’s typically in the high 90s without sacrificing efficacy. Precisely what the lighting specifier needs. This is standard within our range and we make no up charges giving you the very best a fixture can be.
ACCESSORIES
10ft & 25ft Leader Cables
4in, 1ft & 4ft Jumper Cables
Terminator
4ft Mounting Track
Track Connector
Quick Release Tool
Black Symmetric Louver
Black Asymmetric Louver
Black Honeycomb Louver
Black Blade Louver
White Symmetric Louver
White Asymmetric Louver
White Honeycomb Louver
0-10V to ELV Convertor
