NEW GRAZE INTERIOR

Our interior wall grazer is a purpose-built platform engineered to deliver precise, uniform wall illumination without any striations. It offers 17 optical distributions ranging from narrow to wide patterns to accurately control beam shape and wall coverage, along with six lumen packages from 2W/ft to 12W/ft to suit a variety of lighting levels and applications. With CRI 90 for high color fidelity and 0–10V dimming down to 1%, it ensures smooth, controllable output and refined beam quality across the entire wall surface. Designed from the ground up, this platform combines optical precision, uniformity, and reliable control in a single wall grazing solution.

Product Guide

Installs

IES

Revit

CAD

Specs

FEATURES

  • Unrivalled soft uniform light distribution with precise beam patterns

  • 100-277V Universal Input

  • Six lumen packages: LO – 2W/ft; LOP – 4W/ft; LOPP – 6W/ft; SO – 8W/ft; SOP – 10W/ft; SOPP – 12W/ft

  • 12 x New MODA High Power LEDs per foot for uniformity

  • Choice of 17 Optic Options - 10°x10°; 10°x15°; 10°x20°; 10°x30°; 15°x15°; 15°x20°; 15°x25°;
    15°x30°; 17°x17°; 17°x35°; 17°x65°; 20°x20°; 20°x25°; 20°x30°;
    20°x60°; 20°x70°; 22°x30°

  • >90 CQS

  • >90 CRI

  • Low flicker

  • Patented integral field adjustable fluid locking system for a precise aim

  • 0-10V Control – smooth dimming down to 1%

  • Silver and black finish

  • 1ft & 4ft fixtures

  • Sustainably packaged

MP3.0-1ft-240705 DIM 5.png
Untitled - 2025-10-29T123621.424.png

2200K

2400K

2700K

3000K

3500K

4000K

ACCESSORIES

Untitled-2 (5).png

10ft, 25ft & 50ft Leader Cable Kits

WASH LOUVER_BLK_4.png
WASH LOUVER_WHT1.png

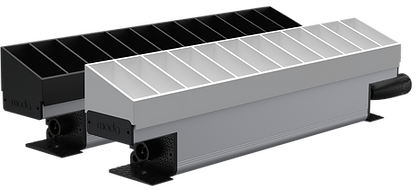

Asymmetric Louver 1FT (Black,White)

WASH LOUVER_BLK_3.png

Visor 1FT (Black)

Untitled-3 (1).png

1ft & 5ft Jumper Cables

SYMMETRIC LOUV ER.png
SYMMETRIC LOUV ER.png

Symmetric Louver 1FT (Black, White)

WASH LOUVER_BLK_HONEYCOMB.png

Honeycomb Louver 1FT (Black)

​
