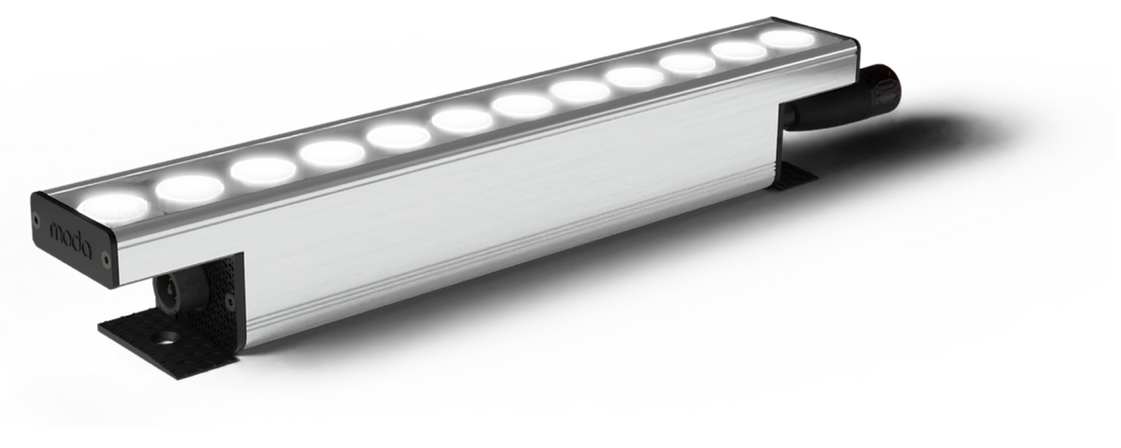

ASYMMETRIC WASH INTERIOR WHITE LIGHT

Asymmetric Wash Interior is a precision-engineered, directional wall-washing system designed for interior applications. It delivers a soft, even illumination with exceptional beam control—unmatched in its class.

Powered by MODA’s new high-CRI, high-output LEDs, the system is available in six lumen packages ranging from 2W to 12W per foot. Fixtures come in 1ft and 4ft lengths, with a choice of three beam angles for medium or wide wall-wash effects.

Installation is quick and efficient thanks to MODA’s Quick-Connect Plugs and patented integral adjustment system, which allows smooth fixture movement and secure locking. Built-in metal fixing plates resist shearing and rotate up to 90°, requiring only two screws for mounting. Gold-plated solid-pin connections ensure superior electrical conductivity and long-term reliability.

Product Guide

Specs

Installs

IES

Revit

CAD

ASYMMETRIC WASH INTERIOR WHITE LIGHT

  • Unrivaled soft uniform light distribution with precise beam patterns

  • 100-277V Universal Input

  • Six Lumen Packages: LO – 2W/ft; LOP – 4W/ft; LOPP – 6W/ft; SO – 8W/ft; SOP – 10W/ft; SOPP – 12W/ft

  • 12 x MODA 3535 High Power LEDs per foot for uniformity

  • Optic Options - 25°x40°x5° ,  25°x50°x5° , 30°x60°x10°

  • >96 CQS

  • >95 CRI

  • Low flicker

  • Patented integral field adjustable fluid locking system for a precise aim

  • 0-10V Control, smooth dimming down to 1%

  • Silver & Black finish​

  • 1ft & 4ft fixtures

  • Sustainably packaged

side wash.png
wash line drawing 3.png
Untitled - 2025-10-29T123621.424.png

2200K

2400K

2700K

3000K

3500K

4000K

ACCESSORIES

Untitled-2 (5).png

10ft, 25ft & 50ft Leader Cable Kits

WASH LOUVER_BLK_4.png
WASH LOUVER_WHT1.png

Asymmetric Louver 1FT (Black,White)

WASH LOUVER_BLK_3.png

Visor 1FT (Black)

Untitled-3 (1).png

1ft & 5ft Jumper Cables

WASH LOUVER_BLK_2.png
SYMMETRIC LOUV ER.png

Symmetric Louver 1FT (Black, White)

WASH LOUVER_BLK_HONEYCOMB.png

Honeycomb Louver 1FT (Black)
