ASYMMETRIC WASH EXTERIOR
MODA Asymmetric Wash optics are engineered to deliver highly controlled, forward-throw illumination with precise vertical cutoff, using compound beam distributions (e.g., 25°×40°×7°, 30°×60°×5°, 40°x60°x5°) to shape light in three dimensions. This allows specifiers to project light across surfaces while tightly limiting spill and glare, resulting in exceptionally uniform wall washing and consistent luminance gradients without striations or hot spots. The narrow vertical component enhances beam control and minimizes up-light, improving visual comfort and efficiency, while the wider horizontal spread ensures smooth coverage over large areas. Ideal for façades, pathways, and architectural elements, MODA Asymmetric Wash provides a refined optical solution where precision, uniformity, and controlled distribution are critical to the design intent.
Product Guide
FEATURES
-
Smooth, even vertical illumination on tall or detailed facades
-
100-277V Universal Input
-
Six lumen packages: LO – 2W/ft; LOP – 4W/ft; LOPP – 6W/ft; SO – 8W/ft; SOP – 10W/ft; SOPP – 12W/ft
-

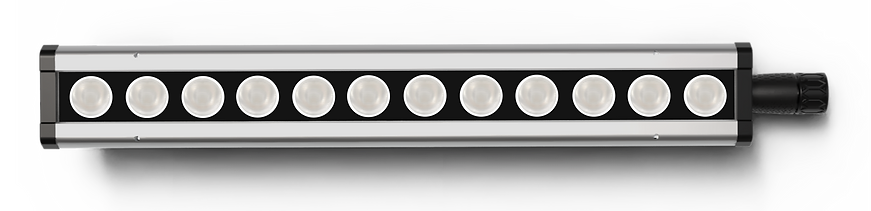

12 x New MODA High Power LEDs per foot for uniformity
-
Choice of 3 Optic Options - 25°x40°x7°; 30°x60°x5°, 40°x60°x5°
-
>96 CQS
-
>95 CRI
-
Low flicker
-
0-10V Control – smooth dimming down to 1%
-
Silver and black finish
-
1ft & 4ft fixtures
-
Patent: US D1116215
-
Sustainably packaged



2200K
2400K
2700K
3000K
3500K
4000K
ACCESSORIES
.png)

10ft, 25ft & 50ft Leader Cable Kits

Asymmetric Louver 1FT (Black)

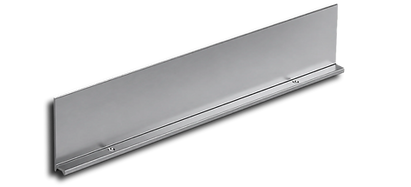

Glare Shield 1FT & 4FT (Silver)
.png)
1ft & 5ft Jumper Cables

Symmetric Louver 1FT (Black)
